You are here: home  > HPS/MH electronic ballast  > 1000W New Design HPS/MH Electronic Ballast With Fan

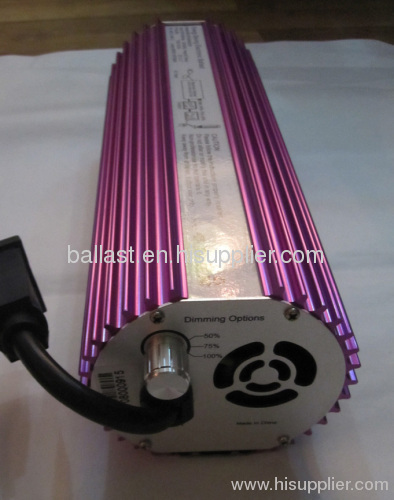

Enlarge 1000W New Design HPS/MH Electronic Ballast With Fan

1000W New Design HPS/MH Electronic Ballast With Fan

Price: 55.0~80.0 USD
Payment Terms: T/T,WU
Place of Origin: Jiangsu, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: LW-HPS/MH 1000W-N
Production Capacity: 6000/month
Delivery Date: 15 days
Power Factor Compensation: Without
Matched Tube: Others
Color: Purple
Means of Transport: Air
Packing: carton
Style: Electronic
Usage: High Pressure Sodium
Brand Name: LW

1000W New Design HPS/MH Electronic Ballast With Fan
Multi-Voltage:AC100-265V
Dimming 3 phase at:50%,75%,100%
CE,FCC,UL,CUL

1000W New Design HPS/MH Electronic Ballast With Fan
horticulture; hydroponic; ballast; electronic ballast
Unique design of circle housing
Unique cooling structure
Unique push and pull fixture
Unique shell surface without screws
Suitable for HPS/MH bulb of American and Europe standard
Input voltage: 100-265Vac(120V/240V)
Output frequency: ≥20KHZ
Input frequency: 50/60Hz   Power factor: >0.99
THD: <10%    CF: <1.7
Usage temperature: -40 to 50°C
Maximum lighting distance: 15m
Dimmable: 3 phase manual dimming—100%, 75%, 50% (optional)
Prolong lamp life at least 10%
Energy-saving up to 30% compared with magnetic ballast
Comprehensive protection: short circuit/open circuit/overheat/lamp failure protection
Good regulation against supply voltage variation
Constant wattage output   Ballast noise rated class A
Thermal protection at 105°C and restart at 55 degree Celsius
Elimination of lamp flicker
CE, FCC, UL, CUL, ROHS are approved
Model
LW-HPS/MH1000W-N
LW-HPS/MH600W-N
LW-HPS/MH400W-N
LW-HPS/MH250W-N
Fan
Yes
Yes
Yes
No
Output Power
1000W
600W
400W
250W
Ballast Size
341*105*95mm
276*105*95mm
211*105*95mm
211*105*95mm
Weight/PC
3kgs
2.35kgs
1.9kgs
1.8kgs
Box Size
373*148*118mm
308*148*118mm
243*148*118mm
243*148*118mm
PCS/CTN
6pcs
6pcs
6pcs
6pcs
Carton Size
400*320*390mm
335*320*390mm
320*270*390mm
320*270*390mm
G.W./CTN
22.5kgs
18kgs
16kgs
15.5kgs
CTNS/Pallet
45ctns
45ctns
60ctns
60ctns
Input Cord
300V 14AWG*2M
300V 16AWG*2M
300V 18AWG*2M
300V 18AWG*2M
Output Cord
US/600V 16AWG*120mm
US/600V 16AWG*120mm
US/600V 16AWG*120mm
US/600V 16AWG*120mm

We are a professional R&D manufacturer in high power electronic ballasts with stable performance. .
The reasons of choosing us as below:
1. We are focus on the high-power electronic ballasts only
2. More than 10 years experience on production
3. Powerful R&D team has more than 30 staffs
4. The core of software and components are researched and developed by ourselves
5. CE, ROHS, FCC, UL are available
6. Product supreme advantage: stable performance
7. Free replacement within two years
8. Directly or indirectly ODM/OEM for Philips, OSRAM etc
9. We are light power supplier for EXPO Shanghai
10. Annual output: More than 500,000pcs electronic ballasts
HPS series
HPS70W, HPS150W, HPS250W, HPS400W, HPS600W, HPS1000W
MH series
MH 70W, MH150W, MH250W, MH400W, MH600W, MH1000W,
MH200W-AC110V (WARM BOOT)
